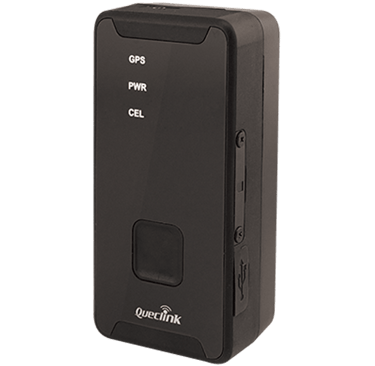

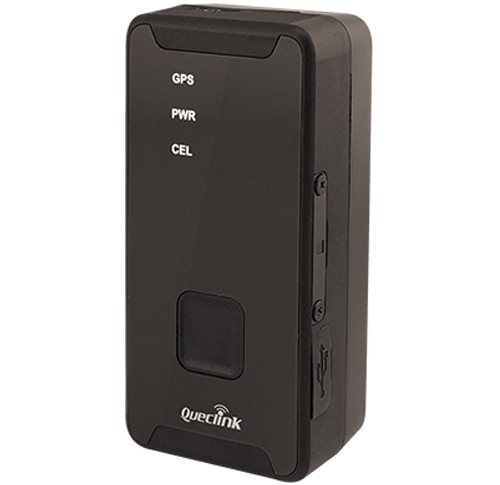

GL320MG
LTE Advanced Real-Time Asset Tracker
________________
1. Global LTE Cat M1/NB2 with 2G fallback using unique antenna solution
2. GL300 series products are successfully deployed in North America and globally
3. Internal battery with 300 hours standby time (when reporting once every 10 minutes)
4. Supports accessories such as external battery kit (17600 mAh) and IP67 waterproof magnetic case
5. Ideal for personal security as well as asset and vehicle monitoring
GL320MG Description
The GL320MG is the LTE version of our best-selling GL300, which is the most popular series in our range of asset trackers with large deployments worldwide. It is used for a wide range of applications which require real-time location knowledge, such as private investigations, package delivery, temporary tracking of vehicles, long distance transportation, endurance racing and animal management. As one of the market leaders in reliable battery powered asset trackers, our products are targets for imitation, but we are happy to say that up to this day, our GL320MG still leads the field in battery life and overall performance.
Certificates
FCC, CE, Verizon, IC, Orange, Anatel, AT&T, T-Mobile, PTCRB
Related Products: GL300W
Certificates
FCC, CE, Verizon, IC, Orange, Anatel, AT&T, T-Mobile, PTCRB
Related Products: GL300W
GL320MG Specifications
LTE Specifications
The GL320MG is the LTE version of our best-selling GL300, which is the most popular series in our range of asset trackers with large deployments worldwide. It is used for a wide range of applications which require real-time location knowledge, such as private investigations, package delivery, temporary tracking of vehicles, long distance transportation, endurance racing and animal management. As one of the market leaders in reliable battery powered asset trackers, our products are targets for imitation, but we are happy to say that up to this day, our GL320MG still leads the field in battery life and overall performance.
Certificates
FCC, CE, Verizon, IC, Orange, Anatel, AT&T, T-Mobile, PTCRB
Related Products: GL300W
Certificates
FCC, CE, Verizon, IC, Orange, Anatel, AT&T, T-Mobile, PTCRB
Related Products: GL300W
LTE Specifications
| Category | Specifications |
|---|---|
| Operating Band |
Cat M1: LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 Cat NB2: (*Cat NB1 is available in Brazil) LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 |
| Data Transmission |
eMTC (DL): 588 Kbps eMTC (UL): 1119 Kbps NB2 (DL): 127 Kbps NB2 (UL): 158.5 Kbps NB1 (DL): 32 Kbps NB1 (UL): 70 Kbps |
EGPRS Specifications
| Category | Specifications |
|---|---|
| Frequency | 850 / 900 / 1800 / 1900 MHz |
| Data Transmission |
GPRS: (DL) 107 Kbps, (UL) 85.6 Kbps EDGE: (DL) 296 Kbps, (UL) 236.8 Kbps |
GNSS Specifications
| Category | Specifications |
|---|---|
| GNSS Type | u-blox All-in-One GNSS receiver |
| Sensitivity |
Autonomous: -147 dBm Hot start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm |
| Position Accuracy (CEP) | Autonomous: < 2.5m |
| TTFF (Open Sky) |
Cold start: 27s average Warm start: 27s average Hot start: 1s average |
General Specifications
| Category | Specifications |
|---|---|
| Dimensions | 3.07’’(L) × 1.57’’(W) × 1.05’’(H) / 77.9 × 39.9 × 26.7mm |
| Weight | 93g (3.28oz) |
| Backup Battery | Li-Polymer, 2600 mAh |
| Standby Time |
Without Reporting: 480 Hours 5 Min Reporting: 260 Hours 10 Min Reporting: 300 Hours |
| Water Resistance | IPX5 Compliant |
| Charging Voltage | 5V DC |
| External Battery Voltage | 3.7V to 4.2V DC |
| Operating Temperature | -20℃ ~ +60℃ |
Interfaces
| Category | Specifications |
|---|---|
| Digital Inputs | 1 positive trigger input for ignition detection, 1 negative trigger input for normal use |
| Power Button | Power on and power off, can be disabled via air interface protocol |
| Function Button with Vibration Feedback | Emergency alert or instant geo-fence setting |
| Cellular Antenna | Internal only |
| GNSS Antenna | Internal only |
| LED Indicators | CEL, GNSS, PWR |
| USB Type-C Interface | Used for external power and configuration |
Air Interface Protocol
| Category | Specifications |
|---|---|
| Transmit Protocol | TCP, UDP, SMS |
| Scheduled Report | Report position and status based on preset time intervals, distance, mileage or a combination of these settings |
| Geo-fences | Support up to 20 geo-fence regions |
| Low Power Alarm | Alarm when battery is low |
| Power On/Off Report | Report when the device is powered on and off |
| SOS/Emergency Alarm | SOS alarm via pressing function button |
| Special Alarm | Special alarm based on digital inputs |
| Motion Detection | Motion alarm based on internal 3-axis accelerometer |
Stolen Vehicle Recovery
Queclink's stolen vehicle recovery products are highly effective in deterring vehicle thefts, even in the most challenging environments worldwide. Widely adopted by insurance companies and vehicle finance providers, our solutions are continually advancing to counter emerging theft strategies. As pioneers in introducing the concept of a secondary hidden device, we offer a range of complementary accessories that provide our customers with even greater peace of mind.
Application Highlights
✓ Constantly evolving to protect against new theft challenges
✓ Guard against relay attack theft methods
✓ 80% to 90% recovery rate in high theft markets
✓ Secure vehicles against key theft or duplication attacks
